AS20 610 Inrush Current Limiter High Power NTC Thermistor 6 Ohm 10A

Name: AS20 610 Inrush Current Limiter High Power NTC Thermistor 6 Ohm 10A
Brand: AFTNTC
Price: 1 USD

China AS20 610 Inrush Current Limiter High Power NTC Thermistor 6 Ohm 10A wholesale

Brand Name : AFTNTC

Model Number : AS20 610

Certification : ROHS

Place of Origin : CHINA

MOQ : 1000PCS

Price : Negotiable

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 10000000pcs per month

Delivery Time : 2-4 weeks

Packaging Details : Bulk

Name : High Power NTC Thermistor

Resistance : 6 Ohm 20%

Max current : 10A

Capacitance : 1500uF@240V

Beta value : 3100±10%

Operating Tempeature Range : -40℃～＋200℃

Contact Now

AS20 610 Inrush Current Limiter High Power NTC Thermistor 6 Ohm 10A

Product Description

Power type NTC suppresses the surge current at startup. Its zero power resistance value suppresses the surge current at the moment of startup so that the surge current at the moment of startup will not be too large.

Application scope:

- High-power switching power supply, conversion power supply, UPS power supply

- High-power power battery charger, electric vehicle charger

- High-power LED lights, high-power electronic energy-saving lamps and other lighting fixtures

Features:

- Small size, high power, strong ability to suppress surge current

- The material constant (B value) is large, the residual resistance is small, and its own power consumption is small

- High current, long life, high reliability

- Easy for circuit board installation, complete series, wide application range

Installation method:

a) For use, use general soldering method for installation;

b) For vibration and impact tests, the leads are fixed and the fixed point is 6±1mm away from the resistor body.

Electrical Specifications

Resistance @ 25°c	6.0 Ω ± 20 %
Max Steady State Current 25°c	10.0 A
Maximum allowable capacitance	1500 uF @240V
B25/50	3100±10%
Insulation Resistance	≥ 100MΩ
Thermal Time Constant	≥ 150 seconds
Dissipation Constant	≤ 20 mW/°C
Operating Tempeature Range	-40℃~+200℃
MSL (moisture sensitivity level)	# 1

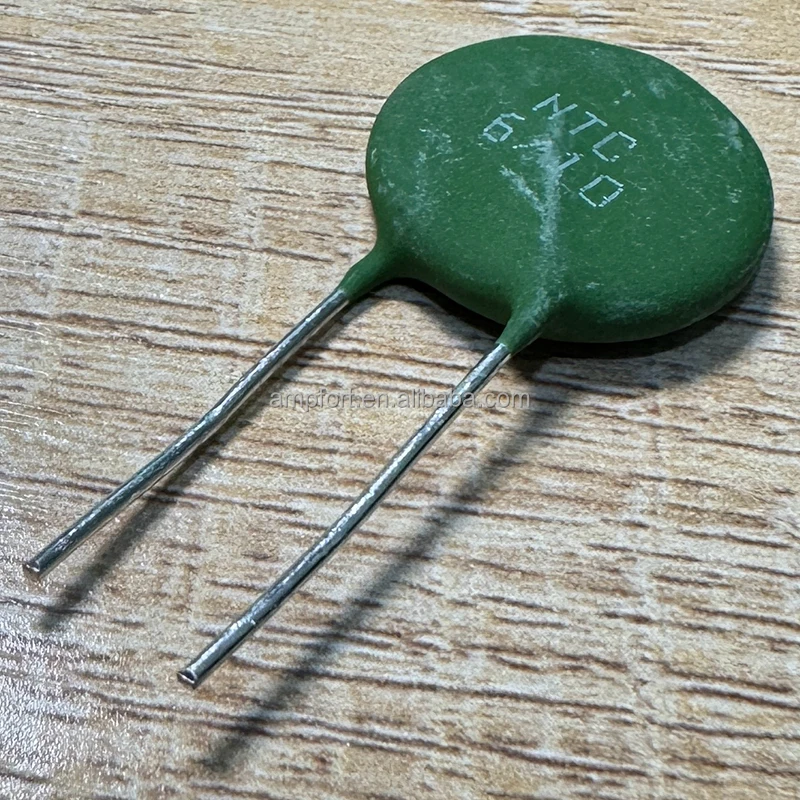

Photos

AS20 610 Inrush Current Limiter High Power NTC Thermistor 6 Ohm 10A
